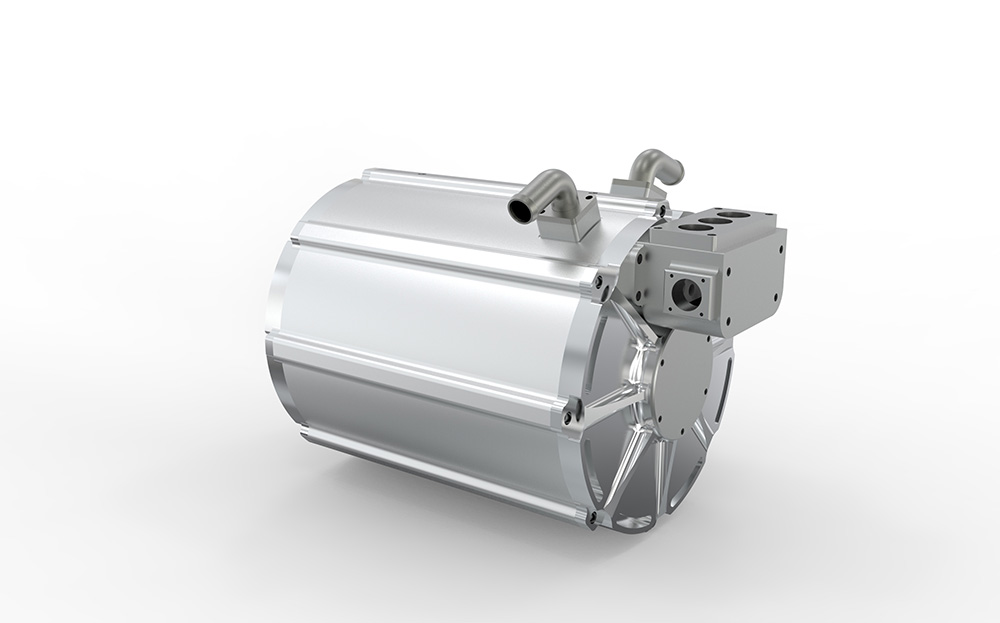

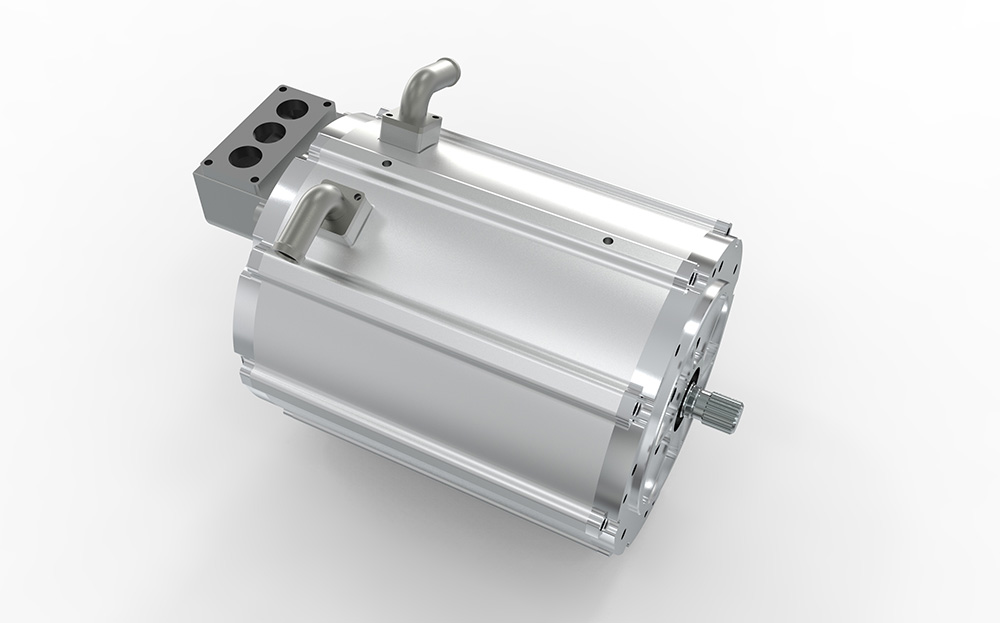

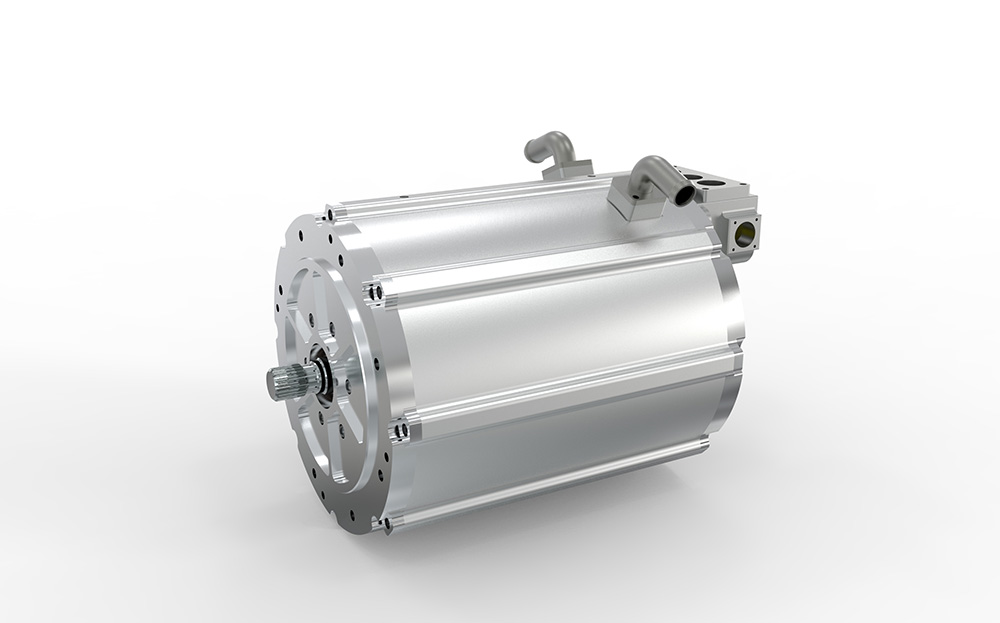

Product name:Permanent magnet synchronous motor 40KW.
Model：TZ210X0400S01.
Special features of permanent magnet synchronous motor
Permanent magnet synchronous motor has small volume, light weight, low loss, high efficiency, wide range of constant power, wide speed range and high efficiency range etc, favored by the oems, the market share of 90% or more.
The company design and production of permanent magnet synchronous motor using high-performance rare earth ndfeb material, the thickness of high grade of low silicon steel sheet, make the company in permanent magnet synchronous motor is high efficient and high power density and high torque density.
In order to meet the requirement of the permanent magnet synchronous motor, the motor designed by our company meets the following requirements:
● Motor electromagnetic simulation and test the performance of the optimized design;
● Structural strength simulation and test of optimization design;
● The optimization design of Ø thermal management system;
● Fluid simulation optimization design;
● Satisfy oems to motor performance, the design of the structure, process requirements;
● For oems to the requirement of vehicle operation condition and road conditions, design targeted motor product requirements;
● Has simulated the vehicle NEDC motor performance test, meet the vehicle in the case of not installed, calculation range of the vehicle.
Name | 40kw Drive motor | |
The performance parameters | Continuous power/peak power | 40/80kw |
Continuous torque/peak torque | 120/280Nm | |
Rated speed/maximum speed | 4000/9000Nm | |
Maximum motor efficiency | 96% | |
Battery voltage (DC) | 312V | |
The motor size | Φ260*280mm | |
Protection grade | IP67 | |
Insulation class | Class H | |
Motor weight | 46kg | |
Applicable to pure electric cars, logistics vehicles, sanitation vehicles, etc.
