Product name: mini charging pile.

Product features

More intelligent: the gun is charged automatically, and the intelligent LED lamp band follows the charging current to display the charging state;

Easier to use: the integrated design of the gun pile, the driving of the pile, can be charged everywhere; Simply press the unlock button, the head cover will automatically pop up, convenient and easy to use;

More reliable: the main control MCU adopts the high-performance ARM cortex-m3 chip of automobile, with fast response speed and high stability;

More portable: integrated innovative design, which makes the net weight of the product only 1.75kg, which is 80% less than similar products, which is beneficial to the reduction of vehicle load and the improvement of vehicle range.

Product Introduction

Product features

● Smarter: the gun is charged automatically, and smart LED lamp with charging current shows charging status.

● Easier to use: the gun pile integration design, the pile with the car, can be charged everywhere; Just click on the unlock button, the head cover will automatically pop up, convenient and easy to use;

● More reliable: the main control MCU adopts the car grade high performance ARM cortex-m3 chip, the response speed is fast, the stability is high;

● Safer: with eight protection functions, and with corresponding fault lights indicating;

● More portable: integrated innovative design, which makes the net weight of the product only 1.75kg, which is 80% less than similar products, which is beneficial to the reduction of vehicle load and the improvement of vehicle range.

● Automatic power loss: electric vehicles are full of power, and the head of the gun is automatically disconnecting, so no need to worry about the continued consumption of electricity or overcharge;

● Leakage protection: the leakage current is greater than 30mA, the charging pile will cut off the output instantly, and the indicator light will give a leakage indication.

● Overcurrent protection: the input current lasts for a period of time more than 10A (10A plug), greater than 16A (16A plug) or larger than 32A (32A connection), and the charging pile automatically disconnects;

● Input/under-voltage protection: the input voltage range exceeds 220V plus or minus 15%, and the charging pile automatically disconnects;

● Over temperature protection: gun body built-in temperature detection sensor, when the internal temperature reaches set temperature, the spear automatically disconnect output and suspend work, until the temperature dropped to normal operating temperature, charging pile automatic recovery function;

● PE (ground protection line) without protection: when the PE (ground protection line) is not connected, the charging pile can automatically identify and disconnect the output;

● Input/under-voltage protection: the input voltage exceeds 220V plus or minus 15%, and the charging pile automatically disconnects;

● Shell protection: ultrasonic welding of shell, IP67 waterproof class; The control module adopts organic silicone sealant, moisture-proof, shockproof and good heat dissipation. The flame retardant property of the product reaches the above V0 level;

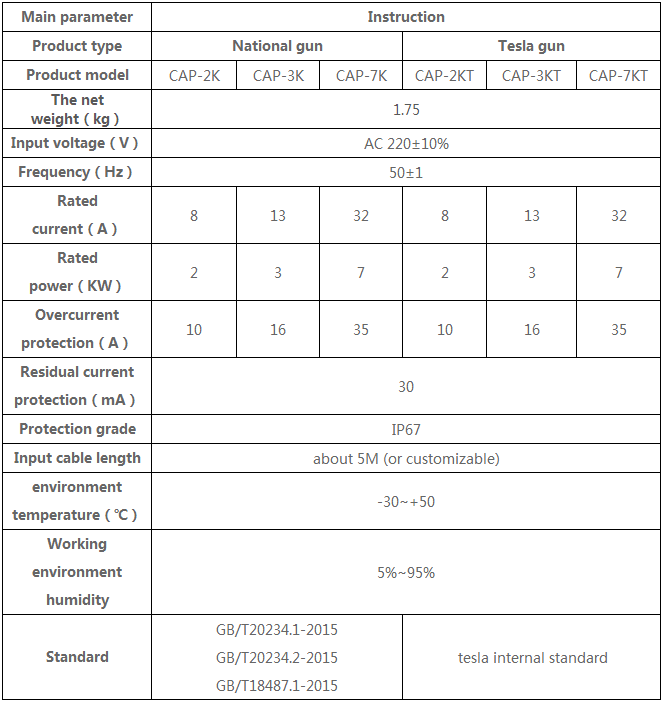

Technical parameters:
